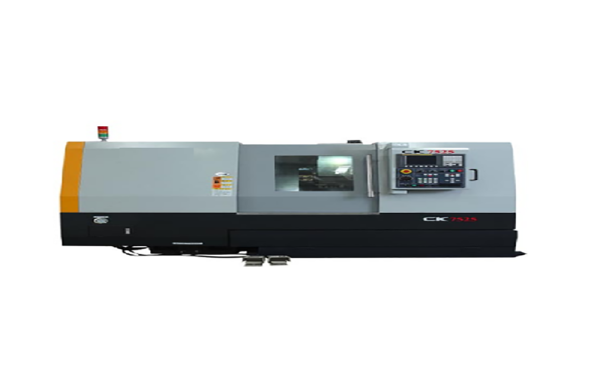

CNC Slant Bed Lathe Lfnc7525_CNC Lathe Machine_PRODUCTS

description1

LFNC7530 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration stre

PRODUCT OVERVIEW

LFNC7530 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).

The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.

PARAMETER

ITEMS		UNIT	LFNC7525	LFNC7525A	LFNC7525C
Capacity	Max.swing diameter over bed	mm	φ550	φ550	φ550
	Max.swing dia. over slide	mm	φ370	φ370	φ280
	Max.turning diameter	mm	φ450	φ450	φ450
	Max.turning length	mm	500/1000/1500	500/1000/1500	500/1000/1500
	Max.bar diameter	mm	φ73	φ73	φ73
Spindle	Type of spindle nose		A2-8	A2-8	A2-8
	Spindle bore diameter	mm	φ87	φ87	φ87
	Chuck diameter	mm	φ254	φ254	φ254
	Spindle speeds	r/min	30-3000	75-1500	30-3000
	Spindle motor power(continuous/30min)	kW	15/18.5	18.5	15/18.5
Tailstock	Quill diameter	mm	φ100	φ100	φ100
	Quill travel	mm	100	100	100
	Taper of center(standard/alive spindle)		Morse No.5/4	Morse No.5/4	Morse No.5/4
Feeds	Travel X/Z	mm	250/525	250/525	250/500

			250/1010	250/1010	250/1010

			250/1500	250/1550
	Rapid traverse rate X/Z	m/min	12/16	12/16	24/24
Turret	Number of turret station		12/8	12/8	12/8
Turret	Tool size（turning/boring）	mm	25×25/φ40	25×25/φ40	25×25/φ40
Other	Slant degree of bed		45°	45°	45°
	Power supply	kVA	50	50	50
	Dimensions (L×W×H)	mm	500：2980×1850×2050	500：2980×1850×2050	500：2980×1850×2050

			1000：3785×1850×1930	1000：3785×1850×1930	1000：3785×1850×1930

			1500：4600×1850×2050	1500：4600×1850×2050
	Weight	kg	4800/5000/6700	4800/5000/6700	4800/5300

CONFIGURATION

Item	Description	Unit	Data
			Power turret	Hyd. Turret
Capacity	Max swing over bed/slide	mm	Φ670/Φ470
	Max turning length	mm	1500(800)
	Max turning dia	mm	Φ600	Φ550
	Max bar dia	mm	Φ90
Spindle	Hydraulic chuck dia	mm	Φ305
	Spindle nose		A2-8（GB5900.1）
	Spindle thru-hole	mm	Φ105
	Spindle speed	r/min	25--2500
			L:12-830 H:50-2500(with speed reducer)
	Main motor(cont./30min)	kW	22/30; 22/26(with speed reducer)
Tailstock	Quill dia/travel	mm	Φ110/150
	Center taper of standard/live spindle structure	MT No.	6/5
Carriage	Slant angle	DEG	60°
	X/Z-axis travel	mm	325/1550(880)	305/1550(880)
	X/Z-axis rapid traverse	m/min	12/16
Turret	Number of stations		12/8	12/8
	Tool section(turning/boring)	mm	32×32/Φ50
Others	Power supply	kVA	60
	Dimension(L×W×H )	mm	4820×2130×2180（3820×1990×2040）
	Gross weight(net)	kg	9730(8330)

CNC Slant Bed Lathe Lfnc7525
