description1
The machine adopts CNC system with function and high reliability .the machine design adopts machinical ,electronic and hydraulic integration method with compact structure.Flat bed and slant slide stru
PRODUCT OVERVIEW

The machine adopts CNC system with function and high reliability .the machine design adopts machinical ,electronic and hydraulic integration method with compact structure.

Flat bed and slant slide structure,with high rigidity and fluent chip removal.

X and Z axis adopt precision linear rolling guide with no blacklash to resulthigh rigidity and accuracy .

The spindle component is of high rigidity construction no preovide variable speed to relize constant linear speed cutting and high speed cutting .

Automatic centralized lubrication with full sufficency and reliability.

Full protection design,beautiful appearance and convenient operation and maintance.

Ball screws are pre-stretched to eliminate back play

X/ Z travel 180x420 mm, 7.5/11 kw main servo motor, 3000 rpm, 8-ways tool post station, chip conveyor, 1 GB program memory, 8.4" color LCD monitor, USB port, rigid tapping.

X and Z axes adopt precision linear guide with no backlash to result high rigidity and accuracy;

X/ Z travel 180x500 mm, 7.5/11 kw main servo motor, 3000 rpm, 8-ways tool post station, chip conveyor, 1 GB program memory, 8.4" color LCD monitor, USB port

PARAMETER

MODELS

CK25

CAPACITY

Max.swing over bed

Ф500mm

Max.cutting diameter for disc parts

Ф250mm

Max.cutting diameter for axle parts

Ф420mm

Max. cutting length

500mm

TRAVEL

X travel

220mm

Z travel

550mm

Guide ways X&Z

Precision linear ball rail

FEED

Rapid feed for axis X

12m/min

Rapid feed for axis Z

20m/min

SPINDLE

Max.speed of spindle

4000rpm

Spindle nose

A2-6

Diameter of spindle bore

Ф65mm

Hydraulic chuck

8″

Spindle motor power

11/15kw

TOOL POST

Tool number

12 ways

Outside diameter of cutting tool shank

25×25mm

Inner dia.of cutting tool shank

Ф40mm

TAILSTOCK

Tailstock sleeve dia.

Ф80mm

Tailstock sleeve travel

100mm

Taper hole of tailstock quill

M.T.No.4

OTHERS

Capacity for coolant

120L

Min.input

0.001mm

Bed structure

45° slant bed integrated with stand

Overall dimensions(L×W×H)

3712×1660×1850mm

Net weight

4500kg

Min.input

0.001mm

CONFIGURATION
CONFIGURATION
  • Fanuc 0i TF(5) Cnc System
  •
  • 3,000-Rpm Spindle
  •
  • Turret: 8-Station Hydraulic Turret
  •
  • Workholding: 8" Closed Hydraulic 3-Jaw Chuck, Ф170mm Spindle Nose
  •
  • This LED Work Light Provides Bright Illumination Of The Work Area For Part Inspection, Job Setup, And Changeovers.
  •
  • Standard Program Memory, 1 GB
  •
  • 12-Month Limited Warranty Covering Defects In Material And Workmanship.An Additional 1-Year Extended Warranty May Be Purchased At Any Time Before The Original Warranty Expires.
  •
  •
  •
  •
  •
OPTIONAL ACCESSORIES
  • System;Both Local And Foreign Brands Control Systems Can Be Adopted According To Customer's Requirement. For Example SIMENS, GSK, FAGOR...
  •
  • Turret;Hydraulic ,Servo, Or Electric Tool Post Can Be Selected According To Customers' Requirement. FANUC Servo Motor For Spindle Motor USD1600.00
  •
  • Working Hold;Hydraulic Solid Chuck Is Standard And Hydraulic Hollowed Chuck Can Be Selected,200mm USD750.00
  •
  • Tailstock;Accoding To Customer's Requests,Hydraulic And Programmable Tailstock Can Be Selected.
  •
  • Renishaw Tool Setter
  •
  • Auto Chip Conveyor; Quick, High-Volume Chip Removal For Increased Productivity USD1500.00
  •
  • Sleeve Spindle (Taiwan Brand) With 5000rpm USD2500.00
  •
  • DH-65 S2 Bar Feeder USD4950.00
  •
  • DH-65L S2 Bar FeederUSD5500.00
  •
PACKAGE

CK25 dimension (L x W x H)

Shipping dimension (L x W x H)

Net Weight

1950x1650x1680mm

3500x1810x2110mm
( with auto conveyor)

3400kg

This document provides the weight and shipping dimensions. The weight listed for a machine may be off by as much as +/- 5% due to option selection, casting variations, and even the moisture content of the wooden crates surrounding the machine.

  •

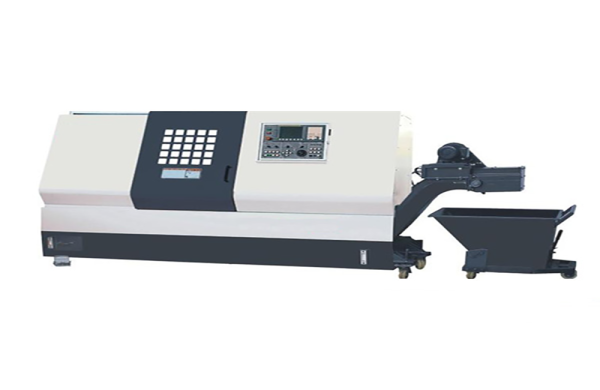

MACHINE WHOLE PICTURES
  •
  •
  •
  •
  •
  •
