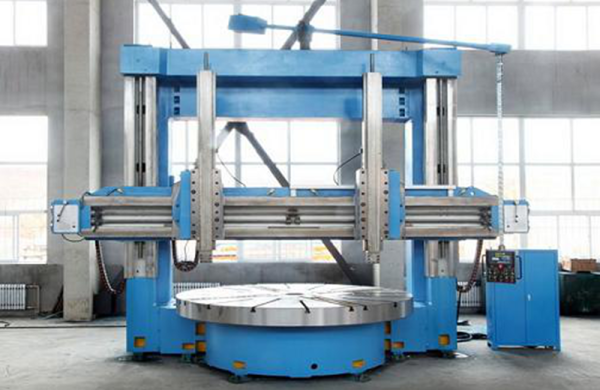

Almaco Machine Tool Co., Ltd.
Name | Value |
Max. turning diameter (mm) | 2500 |
Max. working height (mm) | 2000 |
Max. weight of workpiece (t) | 10 |
Table diameter (mm) | 2250 |
Speed range of table (r/min) | 2~63, 16 steps |
Max. torque of table (KN.m) | 63 |
Max. cutting resistance of right tool post (KN) | 35 |
Max. cutting resistance of left tool post (KN) | 30 |
Total cutting resistance (KN) | 63 |
Travel of tool post (Horizontal) (mm) | 1400 |
Travel of tool post (Vertical) (mm) | 1250 |
Feed range and speed-step of tool post (mm/min) | 0.25-145, 18 steps |
Rapid moving speed of tool post (mm/min) | 1560 |
Crossbeam fluctuation travel (mm) | 1650 |
Crossbeam fluctuation speed (mm/min) | 350 |
Moving degrees limit of tool post (°) | ±30 |
Cutting section of ram (mm) | 200×255 |
Tool posts | 1 position ram |
Cutting section of the tool bar (mm) | 40×50 |
Power of main motor (AC) (KW) | 55 |
Weight of machine (t) | 34 |
Machine overall dimension (mm) | 5180*4560*4680 |
Power supply | 380V/50HZ/3PH |
Electrical components | Schneider electrics |
PLC controller | Mitsubishi |
Table guide ways | Static hydraulic |
Electric standard | CE standard |
Serial No. | Name | Specification | Quantity |
1 | accessory case | 400X600X150mm | 1 |
2 | chuck jaw | 4 | |
3 | square elbow handle box wrench | 24 | 1 |
4 | square bent wrench | 24 | 1 |
5 | T-slot screw | M30X180 | 16 |
6 | foundation leveling bases | 18 | |
7 | foot screw | M30×630 | 12 |
8 | foot screw | M24×630 | 2 |
9 | foot screw | M24×400 | 4 |
10 | hexagonal nut | M24 | 12 |
11 | hexagonal nut | M30 | 6 |
12 | gasket | 30 | 6 |
13 | gasket | 24 | 12 |
14 | spring gasket | 24 | 12 |
15 | spring gasket | 30 | 6 |
16 | hexagonal socket | 36X36 | 1 |
17 | hexagonal wrench | 55X55 | 1 |
18 | hexagonal socket wrench | 5.6.8.10.12.14.17 | 1 set |
19 | box spanner | 32-36 | 1 set |
20 | dull-head spanner | 8-34 | 1 set |
21 | monkey spanner | 450 | 1 |
22 | monkey spanner | 250 | 1 |
23 | pliers | 1 | |
24 | sealing ring | 55 | 2 |
25 | oil gun | 200cm3 | 1 |
26 | 1 | ||
27 | 1 | ||
28 | work lamp | 2 | |
29 | disposable filter | 2 | |
30 | technical document case | ||
31 | operation instructions | ||
32 | certificate of compliance | ||
33 | packing list |
