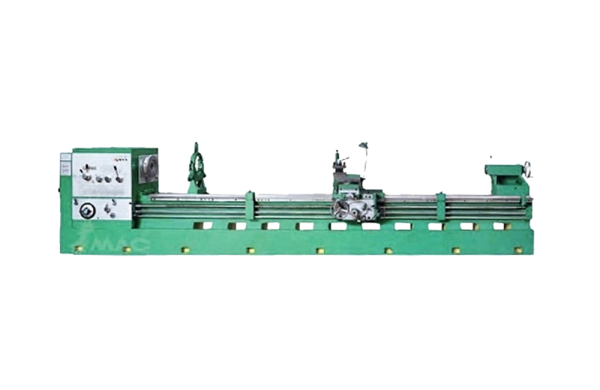

Universal Lathe LZ62100C_Lathe Machine _PRODUCTS

description1

Feature:Sturdy slide and apron, especially designed to withstand high cutting forcesInduction hardened and ground guidewaysHeadstock on tapered roller bearingsCentral, practical controls for feeds and

PRODUCT OVERVIEW

Feature:

Sturdy slide and apron, especially designed to withstand high cutting forces
Induction hardened and ground guideways
Headstock on tapered roller bearings
Central, practical controls for feeds and thread leads
Diametric, inch, module, and metric threads
Handwheel for tailstock adjustment
Large spindle bore
Central lubrication

PARAMETER

MODEL		LZ6263C		LZ6280C		LZ62100C	LZ62120C
CAPACITIES
Max.swing over bed		630mm		800mm		1000mm	1200mm
Max.swing over cross slide		350mm		485mm		685mm	800mm
Center distance		1000 1500 2000 3000 4000 5000 6000 8000 10000mm
Max.swing over gap		830mm		1000mm		1200mm	1400mm
Valid length of gap		300m
Bed width		550mm
Max weight of workpiece		3T
HEAD-STOCK
Spindle hole		105mm or 130mm
Spindle nose		D-11
Spindle taper		1:20
Spindle speeds(Number)		14-750RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds)		1-240mm(54 kinds)
Inch threads rangs(Kinds)		28-1 inch(36 kinds)
Moudle threads range(kinds)		0.5-60 DP(27 kinds)
Diametral threads range(kinds)		30-1 t.p.i.(27 kinds)
Longtudinal feeds range(kinds)		0.048-24.3mm/r (72 kinds)
Cross feed range(kinds)		0.024-12.15mm/r (72 kinds)
Rapid feed:Long./Cross		4/2m/min
Leadscrew size:Diameter/Pitch		T48mm/12mm or T55mm/12mm(used for above 5m lathe machine)
CARRIAGE
Cross slide travel		250mm		420mm		520mm	520mm
Compound rest travel		200mm
Size of tool shank		32*32mm
TAILSTOCK
Spindle diameter		100mm			120mm
Spindle taper		MORSE #6
Spindle travel		240mm
MOTOR
Main drive motor		11kw
Coolant pump motor		0.09kw
Rapid feed motor		1.1kw
KGNIT
Genter distance:(8000mm)	9500kg		10000kg			10500kg
WEIGHT FLOOR SPACE(LWH)
Genter distance: （1500mm）		1060016502350mm

Standard Accessories

Driving plate ￠350
400MM 4 jaw chuck and flange
325mm 3 jaw chuck and flange
100-300mm steady rest
20-180mm follow rest
Chasing dial
Dead Centers, Reduction Sleeve, Maintenance Kit, Foundation Bolts/Nuts, Level Blocks, English Operation Manual.

Optional Accessories:

800MM face plate USD500.00 1000MM USD600.00
630MM 4 jaw chuck and flange USD900.00
400mm 3 jaw chuck and flange USD360.00
U.S.A style quick change tool post USD750.00
Taper turning attachment USD1280.00
CE standard(with chuck and tool post guard, CE cabinet) USD950.00

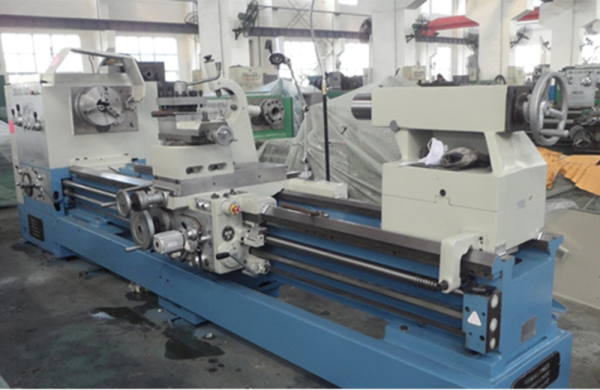

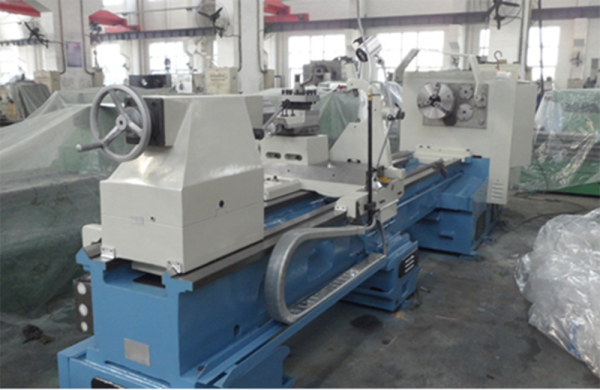

More Pictures
Package Pictures: In Wooden Pallet

Universal Lathe LZ62100C
