Features

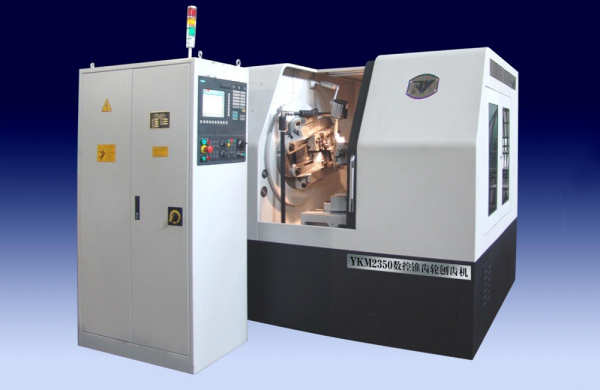

- This is a 4-axis CNC machine: the cradle roll (X-axis), the workpiece rotation (Y-axis), the sliding base feed (Z-axis) and the reciprocating movements of the cutter (S-axis).
- The machine cuts gears with the Generating Principle, of which the gear being cut makes relative rolls repeatedly together with the imaginary generating gear (represented by the reciprocating movements of the cutter).
- The cutter head, the critical part of the machine, is mounted on the cradle and the gear being cut is mounted on the spindle. The indexing box is located on the sliding base, and the cradle and the sliding base are fixed on the machine bed.
- Two cutters with linear cutting edges are mounted on the cutter head and make reciprocating linear movements together with the cutter head.
- A connecting rod mechanism is adopted on the cutter head, which is driven by means of a variable-frequency motor to make the reciprocating movements of the cutter.
- High-precision worm and worm wheel pairs are used for both the cradle spindle and the indexing box spindle, which are driven by means of servo motors.
- A ball lead screw, driven by a servo motor, is used for the feed movement of the sliding base.
- A SIEMENS 828D CNC control system is equipped for the machine.
- A beautiful, safe and suitable full-enclosure, with good visibility and anti-oil splash, is equipped on the machine. The machine has an automatic chip conveyor.
- An independent and sealed electrical cabinet with an air conditioner is equipped for the machine.
- The accuracy of straight bevel gears machined on this machine may reach Grade 7 of the GB Standard.
Application
This machine is designed for cutting straight bevel gears used in the general-purpose machine building industry.
Max. diameter of work | 500mm |
Max. module of work | 10mm |
Max. cone distance of work | 250mm |
Max. tooth length | 85m |
Root angle | 80° |
Extreme ratio, at 90°shaft angle | 1:8 |
Number of teeth | 10—200 |
Minimum teeth number at 1:1 ratio and α=20 degree | 15 |
Max. adjusting angle of cutter head | 8° |
Distance between end of work head spindle and machine center | 70—380mm |
Number of strokes of cutter (15 steps) | 98—500 |
Time for cutting one tooth (11 steps) | 16.1—100s |
Sliding base setting: above machine center Below machine center
|
40mm 100mm
|
Max. cradle roll: above zero scale Below zero scale
|
30° 30°
|
Taper of work spindle hole | 1:20 |
Diameter of taper hole at large end | 100mm |
Diameter of through hole | 78mm |
Power of main motor | 3kw |
Speed of main motor | 800—1300rpm |
Total power of machine | 20KVA |
Overall dimensions (L x W x H) | 2400x1800x1800mm |
Machine weight | 8t |
