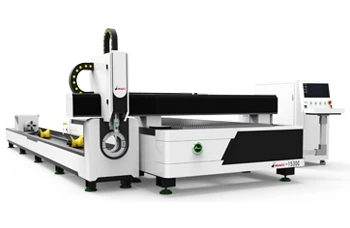

CNCTG1530 Table Type CNC Fiber Laser Cutting Machine

description1

3 manufacturing bases, 10 manufacturing enterprises100,000m2 cutting and welding machine manufacturing baseOver 1,000 staff, 100 senior techniciansOver 500 sets heavy duty cnc plasma and flame cutting

PRODUCT OVERVIEW

3 manufacturing bases, 10 manufacturing enterprises

100,000m2 cutting and welding machine manufacturing base

Over 1,000 staff, 100 senior technicians

Over 500 sets heavy duty cnc plasma and flame cutting machine sales volume every year

Over 300 types cutting and welding equipments

Exported to more than 100 countries and regions

30 minutes driving away from Shanghai PVG airport.

CE & ISO9001:2008 certified

PARAMETER

Quotation

Validity: 45 days
Model Description QTY
CNCTG1530 table type plasma cutting machine	Effective cutting area	1500x3000mm	1set
	Plasma max piercing thickness	25mm
	Plasma max edge start cutting thickness	40mm
	Machine size	2000x4000mm

Main Components	Description	Qty.(set)
Rail	24KG Rail, Helical Rack And Pinion	1set
Drive model	Double-drive; Panasonic AC servo motor(Japan Brand)	3set
Gear box	Neugart(Germany Brand)	3set
Plasma power source	Hypertherm PowerMAX125(America Brand)	1set
Plasma torch height controller-automatic	Sensor THC	1set
CNC controller	LKNC-3200 EtherCAT Controller(17" LED Touch Screen)	1set
Mobile Phone APP	Mobile Phone APP Monitor & Remote Control Machine	1set
Water table	Water Table For Plasma Cutting Dust Collection	1set
Nesting software	FASTCAM Professional Version(Australia Brand)	1set
Cable and hose model	Closed Pedrail	1set
Laser point	Laser Point For Alignment	1set
FOB Shanghai $28,000

Commerce terms
Production time	Within 45 days after down payment
Payment term	30% down payment, balance before shipment
Packing	Plywood case and tray
Container requirement	20'GP container

Warranty: 12months from the date of bill of lading issued.

Installation, training and commissioning service terms:

a) Time cost: 1 engineers 10-15 days

b) Engineer's visa fee, round-trip flight tickets from Shanghai to user's spot, food and accommodation cost undertaken by buyer.

c) Engineer's subsidy 100.00 USD per day, per person.

d) Buyer takes responsibility to arrange a Chinese speaking translator to be assistance during installation and training.

*Product images and cutting parameter inside of this file are for illustrative purposes only and may differ from the actual product!

Technical Specification

1 Model: CNCTG1530 table type plasma cutting machine

2 Basic components

Mechanical Components	Longitudinal rail type	24KG rail
	Plasma cutting torch	1set(Hypertherm)
	Plasma torch height controller	1set
	Plasma torch anti-collision device	1set
	Drive model	Double-drive
	Gas and hose supply type	Pedrail
Electronic Components	CNC controller	TAYOR LKNC-3200
	Plasma torch anti-collision device	1set
	PLC	Delta(Taiwan Brand)
	Electric components	Schneider(France Brand)
	AC servo motor system	Panasonic(Japan Brand)
	Gear box	NEUGART(Germany Brand)
	Program and nest software	FASTCAM(Australia Brand)
	Plasma source	Hypertherm PowerMAX125
Auxiliary Machinery By Buyer	Voltage-stabilizer	We will supply requirement details
	Air compressor
	Oil-water separator

3 Main Specification

Basic Parameter	Effective cutting width	1500mm
	Effective cutting length	3000mm
	Plasma cutting thickness	1-25mm
	Plasma cutting speed	50-9000mm/min
	Cutting torch lifting distance	80mm
	Idle running speed	0-12000mm/min
	Speed setting error	≤±5％
	Torch height controller accuracy	≤±1.0mm
	Longitudinal line accuracy	±0.2mm/10m
Accuracy Test	Complete machine accuracy (Subject to the right drawing) Side length (Four sides) 1000mm x1000mm Lineation speed,500-800mm/min	A B C D
	length of a side	±0.5mm
	Diagonal error \|AD-BC\|	±0.5mm
	Base point return error	±0.2mm
	Intersection point error	±0.5mm
	Lineation forward- reverse error	±0.2mm
	Plasma power source	Hypertherm PowerMAX125
Plasma Part	Duty cycle	100%
	Max output current	125A
	Plasma source power	21KW
	Machine weight	2.8 ton
Other Parameter	Accelerated speed	≥ 0.6m/sec2
	Noise	≤80 db

4 Working requirement

Basic Requirement	Supply power voltage/ frequency	3 phase×380v±10%/50Hz 1 phase×220v±10%/50Hz
	Ambient temperature	-10℃-50℃
	Relative humidity	<90% no condensation
	Surroundings	Ventilate
Plasma cutting requirement	Compressed air	Dry, Oil free; Flow: 400 scfh Pressure: 8 bar

5 Programming And Nesting Software (FastCAM Professional Version)

FastCAM is a powerful CAD plotting software specially used for number control cutting and it can read CAD DXF files and choose and output the NC files of different controllers; in addition, it can speed cutting obviously, heighten cutting quality and thus improve social and economic benefits.

Plotting System

Compatibility of plotting software

Special functions to DXF files;
CAD clearing function;
CAD compacting function;
CAD extraction function;
CAD breaking and ranking functions.

Bridge function, including continuous bridge, break bridge and interruption bridge.

Cutting Path

Able to automatically or manually set cutting direction.

Able to set cutting starting port, finishing point and cutting sequence.

Able to set leadin and leadout.

With the mid-layer function of CAD, able to set and conduct cutting, marking and drilling etc.

Nesting System

Able to nest quickly, continuously and automatically by placing hundreds of parts on many steel plates.

Able to conduct optimized nestling on the rest steel plates.

Able to manually interrupt AC automatic nestling and interfere with discharge.

In the optimized nestling process, able to specify, revise and choose parts and have free horizontal movement, rotation and matrix etc.

Verifying System

Able to have analogue check and change to NC cutting files.

Able to calculate material cost and processing cost.

Able to support many controller NC codes and switch among different codes.

Able to provide many languages that Windows platform supports.

Printing: Discharging drawings and name, discharging parts list;
steel plate size, cutting speed, cutting time and steel plate utilization rate;
Programming parameters and number control codes.

6 CNC Controller Details

LKNC-3200B CNC (EtherCAT) Intro

The new CNC Cutting Control System LKNC-3200B is a field bus control system using industrial Ethernet (EtherCAT) based on 64-bit Linux real-time operating system. Instead of traditional motion control axis cards (PMAC) and complex wiring between CNC and servo drives, the new EtherCAT based CNC only uses a common network cable to connect multiple network servo drives in series. In addition, the digital serial communication method adopted by the network cable greatly enhances the anti-interference ability of motion signals and improves the accuracy.

In the Human-Machine-Interface (HMI), the new LKNC3200B continues the multi-task operation of the previous controller: during the process of part processing you can perform multiple operations, such as file editing, graphic changing, parts nesting, network transferring, parameter setting and cutting torch enabling. Equipped with a 19〞high resolution LCD touch screen, it has the characteristics of intuitive and user-friendly interface, easy and simple operation.

This system can also monitor the status of AC servo in real-time environment, and truly realize the control function of true bilateral and full feedback.

In terms of network, the system supports the mainstream industrial communication protocol OPU UA, which facilitates the access of equipment to the group control MES system of major manufacturers.

The system consists of:

IndustrialComputer	Intel(R) J1900 4-Cores 4-Threads CPU @2.00GHz
RAM	DDR3L 2G(default) / 4G / 8G
Storage	SSD 60G or above
Operating system	Linux
Software	KNC English version
Display	19 Widescreen with explosion-proof touch screen（1366X768）
Field bus mode	EtherCAT
Axis number	2（Y、1X） 3（Y、1X、2X） 4 with THC（Y、1X、2X、1Z） 5 with 2-THC（Y、1X、2X、1Z、2Z）
I/O	EtherCAT I/O Modules (WAGO)
Peripheral	USB x4(USB3.0 x1) RS232/485 Serial port Ethernet RJ45 (OPU UA)
Size	136mm127mm40mm 0.65KG
Power adapter	DC12V-5A

Specifications:

1. True bilateral, full feedback:

Coordinate absolute value and difference value of Double X axis are respectively reflected on the control interface

The alarm information, absolute value, torque, speed, etc. of the motor are fed back to the controller

2. The built-in THC:

Z axis as an independent axis, controlled by servo motor, more accurate and fast

The communication mode of EtherCAT bus ensures 1ms arc voltage sampling period and height change during cutting

The controller interface displays the current cutting torch height and arc pressure in real time

3. Integrate plasma processes:

Main plasma power supplies such as Hypertherm，Thermal Dynamics, Kjellberg and ESAB

Various processes, materials and up to 60 plate thicknesses are available

Specially for Hypertherm XPR series plasma optimization and alarm log recording

Record and count plasma consumables, and set the maximum piercing times and the maximum cutting length
