Almaco Machine Tool Co., Ltd.

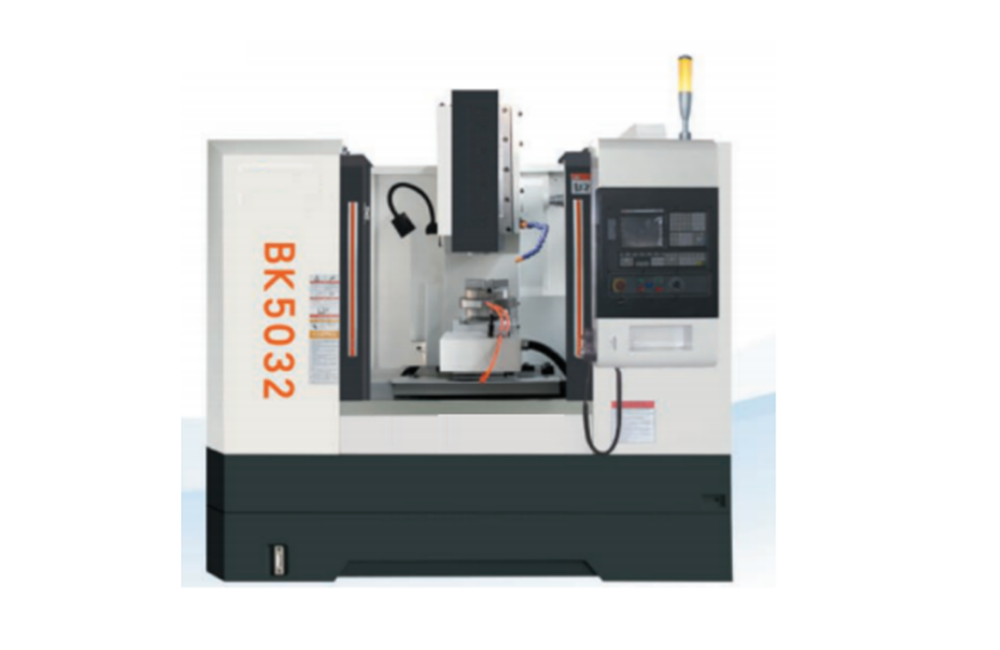

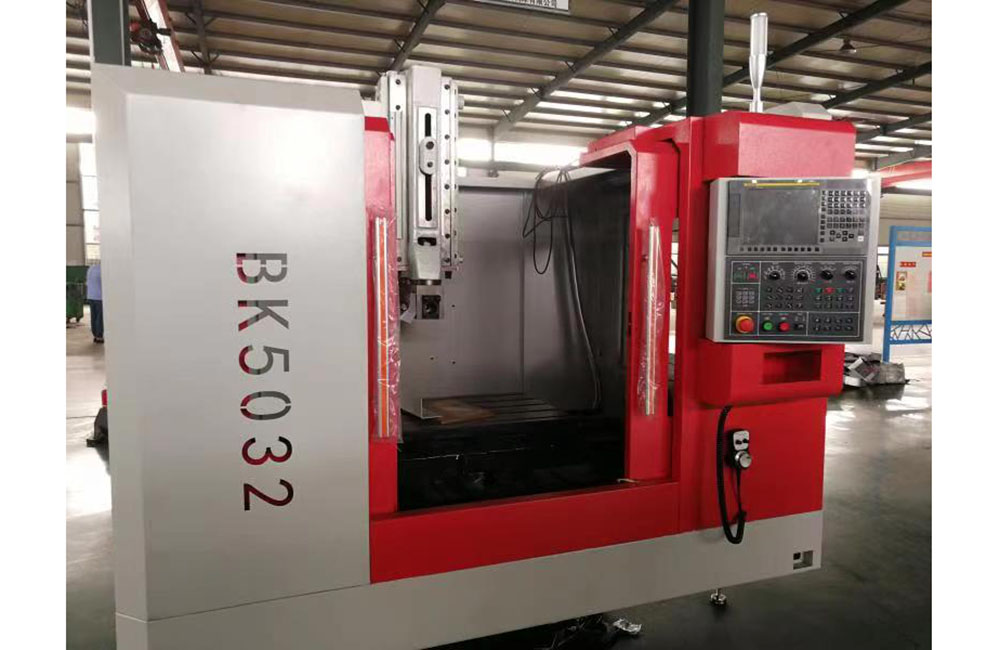

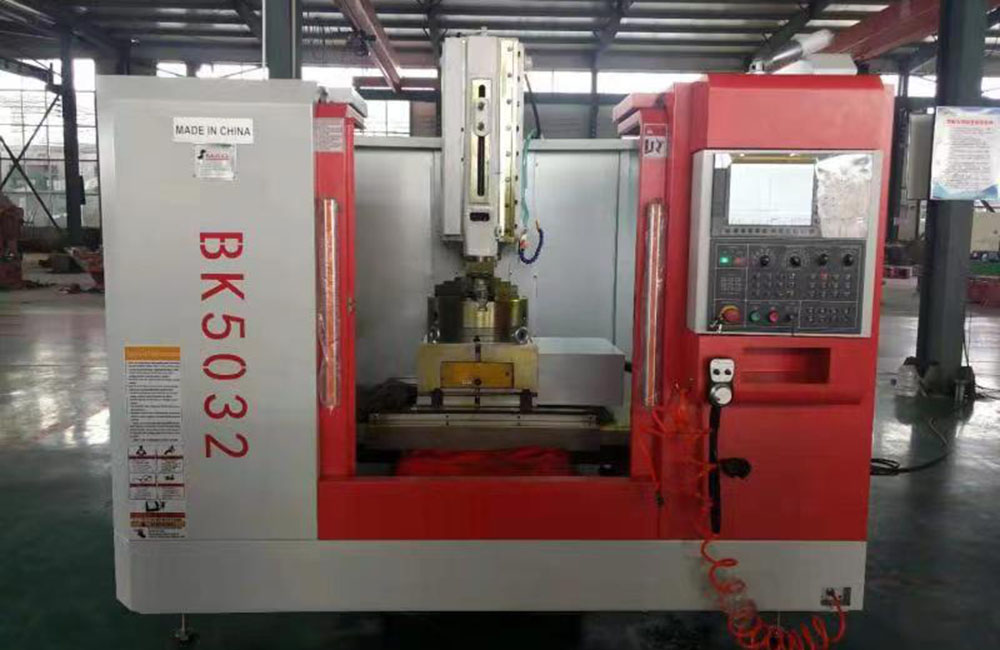

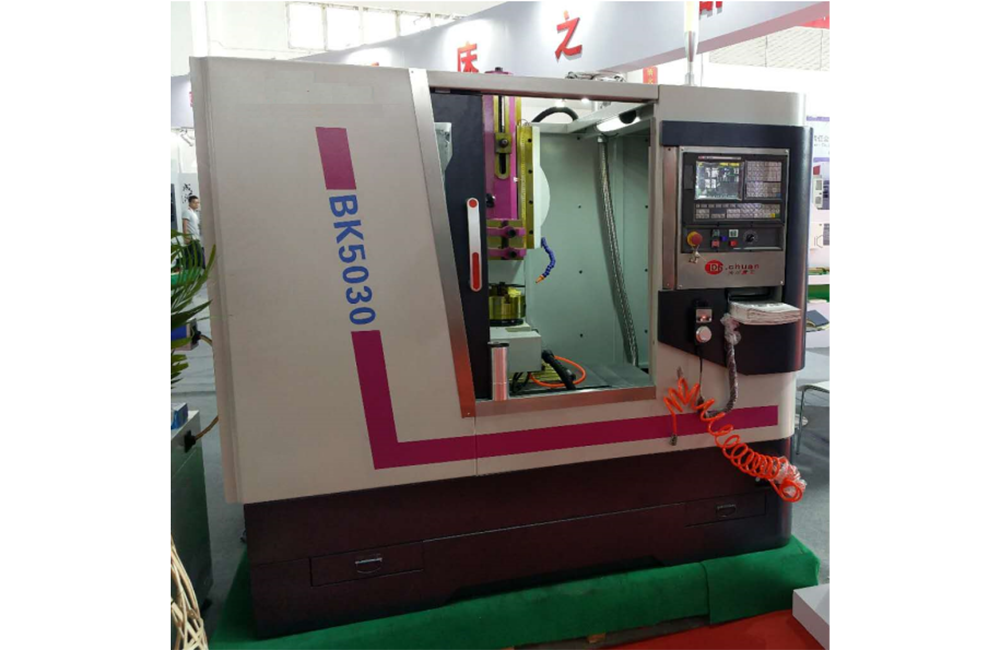

BK5032 CNC slotting machine is a new product designed and developed by our company.。This machine has a slotting plane, forming surface and keyway function. It is a slotting machine that realizes slotting by digital control.The main drive adopts the crank handle mechanism, and the servo motor realizes the large torque transmission through the deceleration. The X and Y feeds the servo control to realize the stepless speed regulation function, the X direction ball screw and the motor are directly connected, and the Y direction ball screw and the The motor is transferred through the timing belt. According to the user's needs, the CNC indexing head or CNC rotary disc can be configured. The machine tool is powerful and can process keyways in different angle directions.The machine has high power, good rigidity, large precision reserve, high cost performance, long service life, and can be widely used in machine tools and automobile manufacturing, various mechanical and electrical and aerospace industries. It is an ideal equipment for keyway processing of various materials.
Main structural features
1.The slotting machine is controlled by KND1000M--C CNC system. With an external handwheel.
2.The transmission mode is synchronous belt transmission, with low noise and large transmission power.
3.The main slotting motor is servo motor.
4. Y-axis screw nut type adopts double nut preload.
5.Z direction and Y-axis perpendicularity≤0.02mm.
6.Optional TK13250 CNC rotary table.
7.Full protection.
The main technical parameters | Unit | Parameter |
|
Maximum insertion length of ram | mm | 320 | |
Ram stroke adjustment | mm | 315 | |
Number of ram movements | n/min | 20/32/50/80 | |
Workbench size | mm | 600*320 | |
Workbench trip（X、Y） | mm | 620*560 | |
Distance from the axis of the cutter head support hole to the forearm of the column | mm | 600 | |
Distance from the end face of the cutter head support hole to the workbench | mm | 490 | |
X-direction motor torque | （N.M） | 7.7 | |
Y-direction motor torque | (N.M) | 7.7 | |
Moving speed | X(m/min) | 5 | |
Y(m/min) | 5 | ||
Ball screw（X） | FFZD3205-3/P4 | ||
Ball screw（Y） | FFZD3205-3/P4 | ||
Main motor power | KW | 4 | servo |
Serial number | Name | Model | Quantity |
1 | Product certification | BK5032 | 1 |
2 | Precision checklist | BK5032 | 1 |
3 | Machine tool manual | 1 | |
4 | Packing List | BK5032 | 1 |
5 | Plum wrench | 30mm | 1 |
6 | Allen wrech | 10mm | 1 |
7 | Shake | 1 |
