Full-auto hairpin bending machine(Servo Type);One-time bending of long U hairpin bender which is from Coiled tube;Full auto digital control system,PLC program,touch screen HMI interface;Belt feeding,h
PRODUCT OVERVIEW

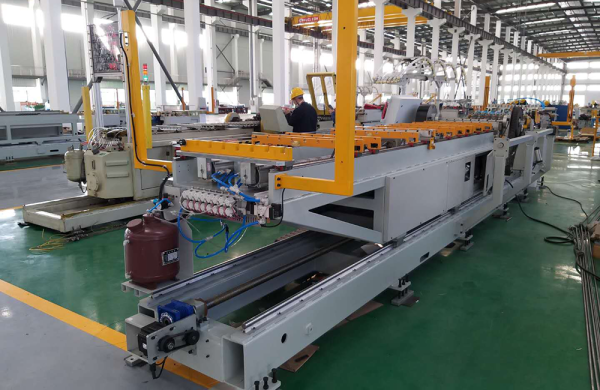

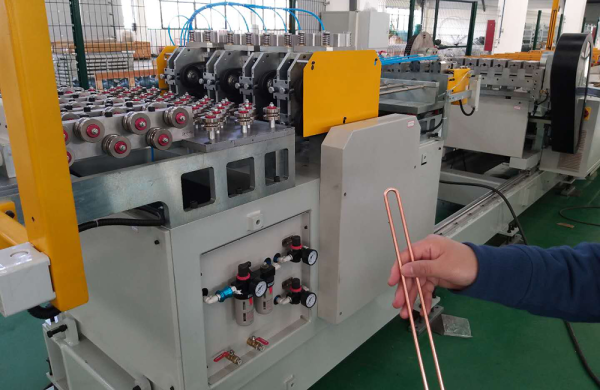

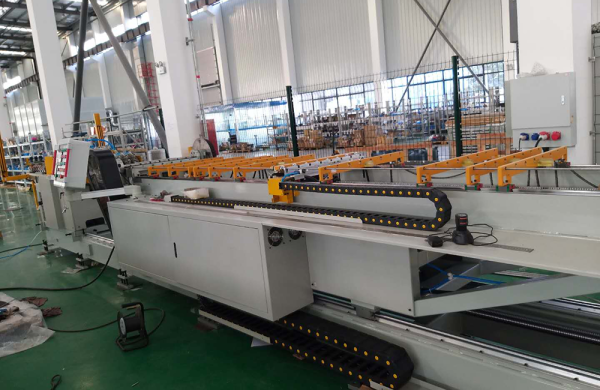

Full-auto hairpin bending machine(Servo Type);
One-time bending of long U hairpin bender which is from Coiled tube;
Full auto digital control system,PLC program,touch screen HMI interface;
Belt feeding,high continuity;
Chipless cutting, flexiblly control;
Precise tool mould,attractive shape;
Set length by servo, fast, accurately;
Auto-dischargeing,easy collecting of finished workpiece.
One-time bending of long U hairpin bender which is from Coiled tube;
Full auto digital control system,PLC program,touch screen HMI interface;
Belt feeding,high continuity;
Chipless cutting, flexiblly control;
Precise tool mould,attractive shape;
Set length by servo, fast, accurately;
Auto-dischargeing,easy collecting of finished workpiece.
PARAMETER
Item | Specification |
Model | AHB-8 |
Max Number of Bending | 8 |
Tube Diameter | φ5-φ15.88 |
Thickness Range | 0.28-0.8mm |
Center Distance | Adaptive Configuration |
Min. Bending Length | 200mm |
Max. Bending Length | 3800mm |
Cycle | ≤12（According to the workpiece 1 m long） |
Feeding Mode | Outside of insied pump type |
Total Power | 8KW |
Hydraulic Pressure | ≤6.3Mpa |
Air Pressure | 0.4-0.6MPa |
Power Supply | AC380V，50HZ,3 phase 5 wire system |
