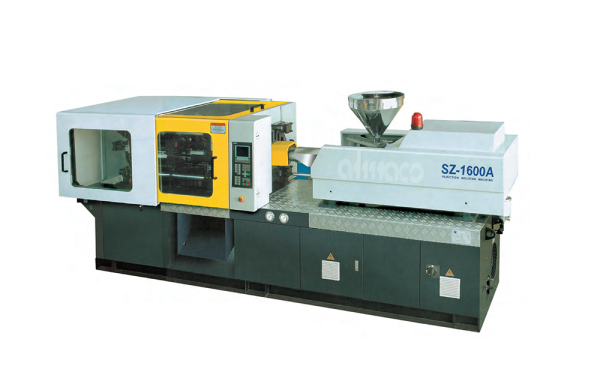

Plastic Injection Machine SZ-1600A

5fc60d123d5a6
description1
Model18013180141801518016180171801818019180201802118022180231802418025UnitSZ-700ASZ-950ASZ-1300ASZ-1600ASZ-2000ASZ-2400ASZ-3000ASZ-3800ASZ-4800ASZ-5500ASZ-6500ASZ-7500ASZ-10000AInjection UnitScrew Dia
PRODUCT OVERVIEW
Model


18013

18014

18015

18016

18017

18018

18019

18020

18021

18022

18023

18024

18025

Unit

SZ-700A

SZ-950A

SZ-1300A

SZ-1600A

SZ-2000A

SZ-2400A

SZ-3000A

SZ-3800A

SZ-4800A

SZ-5500A

SZ-6500A

SZ-7500A

SZ-10000A

Injection Unit















Screw Diameter

mm

32

35

30

35

40

35

40

45

45

50

55

50

55

60

55

60

65

60

65

70

65

70

75

70

75

80

80

85

90

85

90

95

100

90

95

105

100

110

120

130

Screw L/D Ratio

L/D

20

18.8

24.5

21

18.4

24

21

18.7

23.3

21

19.1

23.1

21

19.3

22.9

21

19.4

22.7

21

19.5

22.6

21

19.6

22.6

21

19.7

22.9

21

19.8

22.3

21

19.9

18.9

23.2

22

19.9

24.2

22

20.2

18.6

Theoretical Shot Volume

cm3

112.5

135

113

154

201

173

226

286

358

442

534

491

594

707

665

791

929

848

995

1154

1061

1231

1413

1346

1545

1758

2141

2418

2710

2298

2576

2870

3181

2861

3188

3894

4083

4941

5880

6901

Shot Weight(PS)

g

101

121

103

140

183

158

206

260

326

402

486

447

540

643

605

720

845

772

905

1050

966

1120

1286

1225

1406

1600

1948

2200

2466

2091

2344

2611

2895

2603

2901

3543

3715

4496

5350

6280

Injection pressure

Mpa

232

194

249

183

140

235

180

142

219

178

147

215

178

149

210

176

150

207

176

152

203

175

152

201

175

154

188

167

149

206

184

164

149

195

175

143

206

171

143

122

Theoretical injection rate(PS)

g/s

62

72

67.5

91.8

120

110

143

181

142

175

212

145

175

208

176.5

210

245

241

283

328

308

357

410

370

423

484

427

482

541

400

448

499

553

560

610

700

695

841

1001

1175

Plasticising Capacity

g/s

11

12

8.3

12.5

18

13.8

19.7

27.1

20.1

26.5

34.2

22.5

28.7

35.4

26.4

32.5

40

35.2

43.3

51.8

50.6

60.5

71.5

60.4

71.4

83.7

80

100

118

60

75

85

100

85

100

110

96

116

130

148

Screw torque

N.m

390

510

740

1250

1510

2000

2530

2860

3490

5170

6580

7180

8690

Max.screw rotate speed

r/min

220

260

250

200

170

150

150

150

150

150

125

130

110

Injection stroke

mm

140

160

180

225

250

280

300

320

350

425

405

450

520

Clamping unit















Max.clamping force

KN

700

950

1300

1600

2000

2400

3000

3800

4800

5500

6500

7500

10000

Max.opening stroke

mm

290

340

400

460

500

530

590

680

770

820

870

950

1160

Space between tie bars

mm

320X320

360x360

420x420

480x480

505x505

555x555

610x610

680x680

760x760

810x810

850x850

950x950

1110x1110

Mould height

mm

100-300

135-380

160-440

180-500

190-530

200-570

220-630

250-710

280-790

350-820

350-900

400-960

450-1200

Max.daylight

mm

590

720

840

960

1030

1100

1220

1390

1560

1640

1700

1910

2360

Ejector force

KN

25

25.4

31.4

45.2

53.1

61.5

70.6

90.7

113.4

150

200

200

245

Ejector stroke

mm

60

85

100

115

125

135

150

170

195

210

260

280

350

Ejector quantity


1

5

5

5

5

9

9

13

13

13

17

17

21

Other















Pump motor power

KW

9

11

15

18.5

18.5

22

30

37

45

55

55

67

90

Pump pressure

Mpa

16

16

16

16

16

16

16

16

16

16

16

16

16

Heating power

KW

6.2

7.3

9.2

13.6

16.6

18.5

22

25

28

33

37.15

46.45

68.45

Heating zone


4

4

4

4

4

5

5

5

5

6

6

6

6

Size

m

3.65x1.2x1.6

4.25x1.2x1.8

4.7x1.25x1.85

5.3x1.35x1.9

5.9x1.5x2.0

6.2x1.6x2.1

6.7x1.75x2.25

6.8x2.0x2.3

7.5x2.1x2.45

8.4x2.2x2.6

9.3x2.3x2.7

10.1x2.6x2.8

12.38x2.8x3.5

Net weight

t

2.7

3.2

4.3

5.6

6.8

8

11

15

20

23.5

32

40

60

Oil tank capacity

L

230

260

360

420

420

440

560

820

850

1000

1200

1500

1700

International designation


700-230

950-280

1300-410

1600-785

2000-1060

2400-1390

3000-1750

3800-2150

4800-2710

5500-4040

6300-4710

7500-5580

10000-8410
