Machine Characteristics

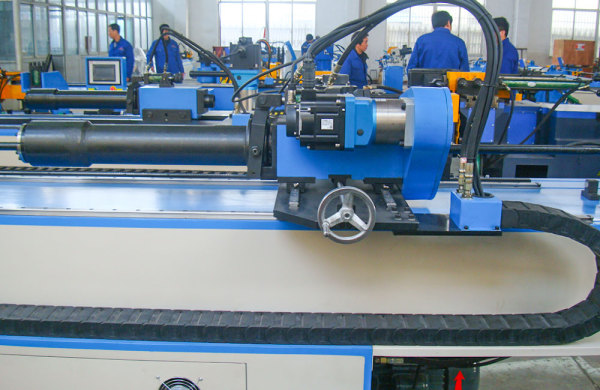

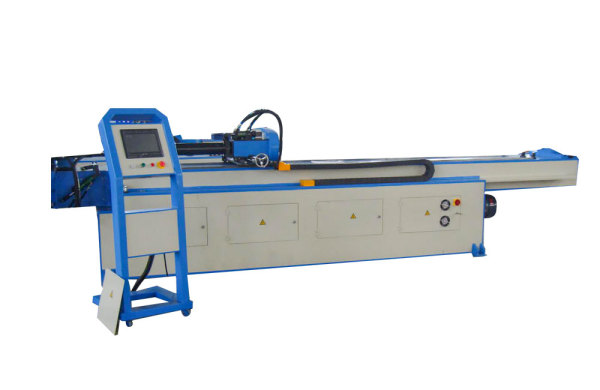

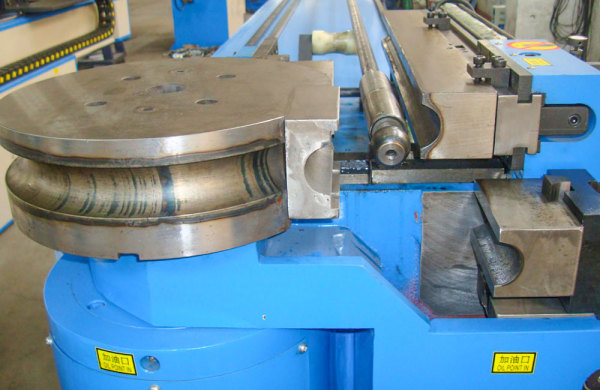

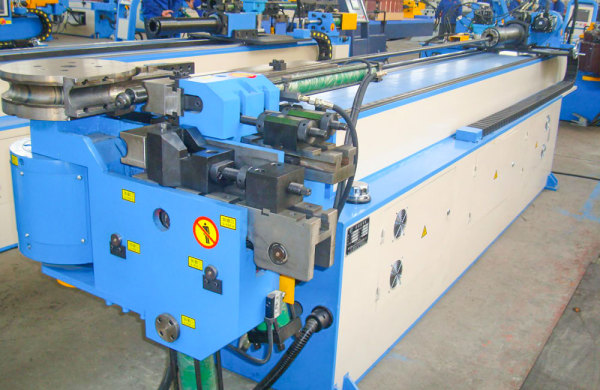

GM-SB-63CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.Pipe rotating (B axis), and pipe feeding(Y axis) are bothe driven by servo motor. Pipe bending(C axis) is hydraulic by cylinder
Name | Unit | Parameter |
Max. Bending Capacity | mm | ￠63*3 |
Bending Radius Range | mm | 25-300 |
Max. Bending Angle | ° | 190° |
Bending Speed | °/sec | 30 |
Turning Speed | °/sec | 160 |
Feeding Speed | mm/sec | 800 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |
Turning Servomotor Power | kW | 1 |
Feeding Servomotor Power | kW | 1.5 |
Though Effective Distance | mm | 4000 |
System Motor Power | kW | 5.5 |
Max. Pressure | Mpa | 16 |
Oil Pump Delivery Volume | L | 25 |
L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
Weight | T | 3.0 |
Name | Manufacturer |
Hydraulic Motor | Suzhou Runmali or Siemanz Beide |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken |
Oil way Board | Suzhou Boguan |
Cylinder | Shanghai Qifan |
Oil tube | Suzhou Kejia |
Touch screen | Taiwan Weinview |
PLC | Japan Mitsubishi |
Servo Motor | Japan Mitsubishi |
Angle controller | Japan Nemicon |
Contactor | German SCHNEIDER |
Other Electric Parts | German SCHNEIDER,Omron, Taiwan SHILIN |
