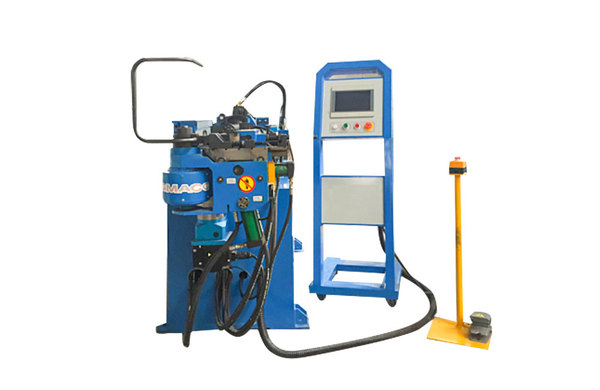

50CNC Tube Bending Machine

5fc60d7053f4f
description1
Main features:The frame is assembled in monoblock after welding, it is processed by heating treatment, machining by CNC Floor Boring and Milling center, ensuring the rigidity and processing accuracy o
PRODUCT OVERVIEW

Main features:


The frame is assembled in monoblock after welding, it is processed by heating treatment, machining by CNC Floor Boring and Milling center, ensuring the rigidity and processing accuracy of the frame.


YUKEN hydraulic system and pump , making sure the machine working stabilization


Bending die , clamping die , pressure die , mandrel and wiper die (optional ) , all adopt slow speed wire cut and CNC machine making , the material all adopt 42CrMo , making sure the use life


CE standard electrical parts

Mitsubishi PLC control

Schneider electrical parts



Touch screen setting all parameters ,

( bending degree , feeding length , rotating degree )

Manual /semi auto /fully auto working model

Chinese /English language


Servo motor bending

This is optional , usually , only use hydraulic cylinder driven the bending , if you looking high speed with high precision , we suggest the servo motor ( Mitsubishi servo motor )

Workshop photos

PARAMETER

No

Name

Unit

Parameter

01

Max bending capability:Mild steel round tube

mm

¢50*2

02

Stainless Steel

mm

42*2

03

Min. bending radius

mm

R≥1.5D

04

Max. Bending radius(Standard)

mm

410

05

Though Effective Distance

mm

3500

06

Head overhang (on bending center)

mm

700

07

Head height (on bending center)

mm

158

08

Bending center height (from floor)

mm

1000

09

Max. Bending Angle

°

190°

10

Max. Bending Speed

°/sec

90

11

Bending Angle Precision

°

±0.1

12

Feeding Precision

mm

±0.1

13

Rotating-tube Precision

°

±0.1

14

Pipes storage capacity

pieces

1000

15

Max rotating speed

°/sec

180

16

Hydraulic System Motor Power

KW

5.5

17

Hydraulic Pump Output Volume

L

23

18

Max Pressure

Mpa

16

19

Oil Tank Volume

L

320

20


Repeated Location
Precision


Bending Axis

°

±0.1

21

Diversion Axis

°

±0.1

22

Ovality rate after processed

<8%

23

Thickness Reduction after processed

<12%

24

Tooling Center Height

mm

48

25

Feeding Method

1.clamping

2.loosen

Feeding servo

KW

1

26

Rotating servo

KW

0.75

27

Machine Voltage

V

As per customer’s requirements

28

L*W*H

mm

4800*1050*1350

CONFIGURATION

No

Name

Manufacturer

01

Touch screen

Taiwan Weinview

02

PLC

Japan Mitsubishi

03

Rotating servo motor

Japan Mitsubishi

04

Feeding servo motor

Japan Mitsubishi

05

Rotating driver

Japan Mitsubishi

06

Feeding driver

Japan Mitsubishi

07

Linear guideway

SHAC(Taiwan)

08

Magnetic Valve

Japan Yuken

09

Flood Valve

Japan Yuken

10

Oil tube

Suzhou Kejia

11

integrated oil circuit

Taiwan Shanghong

12

Vane pumps

Tuoli

13

Main motor

Siemens(joint venture)

14

Emergency Button

Omron

15

Oil tank

Shanghai Qifan

16

Other electric parts

Schneider

17

photoelectric switch

Omron

18

Power Switches

Taiwan Meanwell

19

Relay integrated block

Custom-made

20

Transformer

Wuxi Xinyu

21

Reducer

Germany Hengte

22

Bearing

Wahaluo
