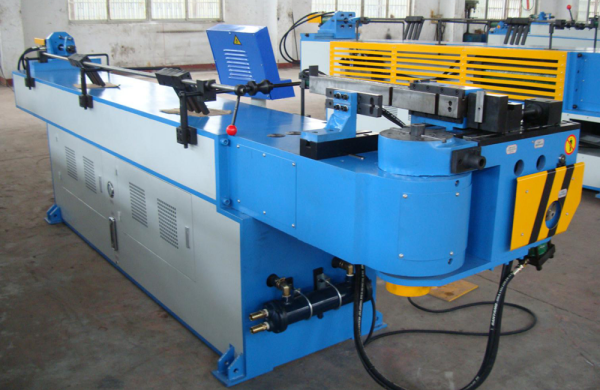

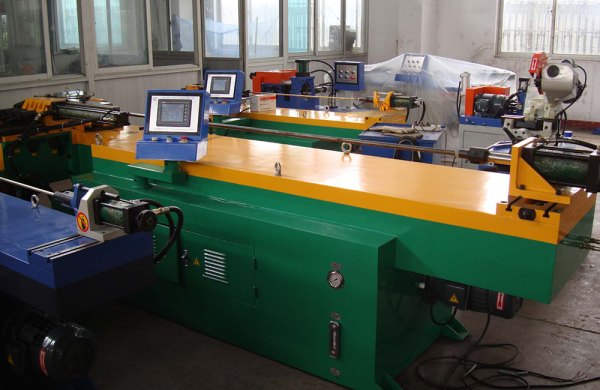

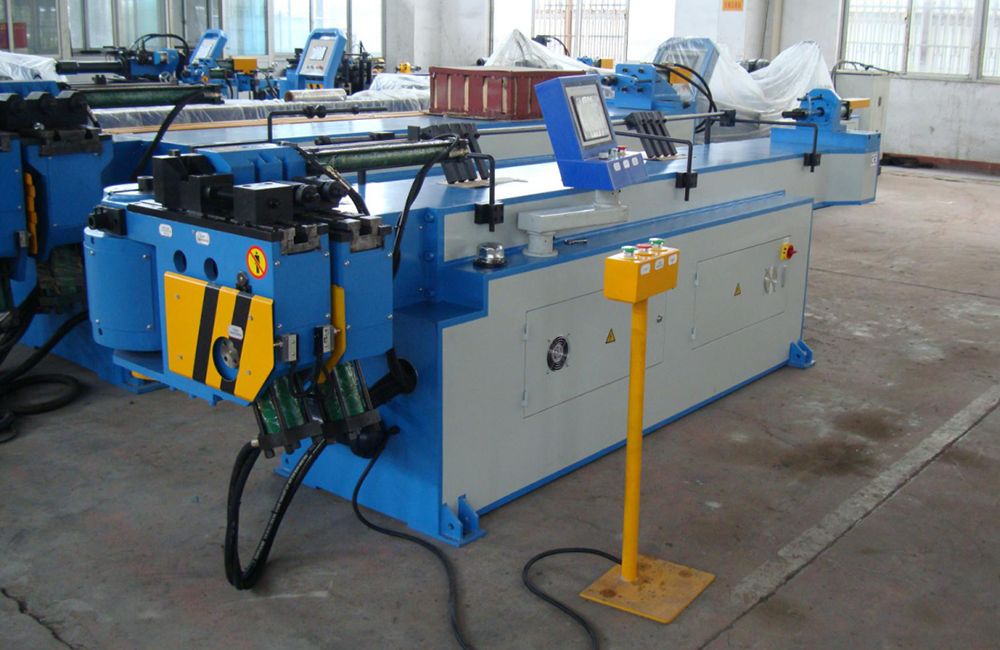

StandardHuman Interface offers easy access to auto and manual operating modes.Standard clockwise bending direction.Fully hydraulic clamping on clamp die and pressure die.Level-way hydraulic clamping.D
Standard
- Human Interface offers easy access to auto and manual operating modes.
- Standard clockwise bending direction.
- Fully hydraulic clamping on clamp die and pressure die.
- Level-way hydraulic clamping.
- Direct acting hydraulic pressure die with adjustable speed valve.
- Maximum 16 sets of program storage,Maximum 16 bends for each program.
- Programmable material spring back settings for each bend angle.
- Bending Axis-Driven by Cylinder,Feeding Axis-Manual,Rotating Axis-Manual.
- Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
- Foot Pedal Cycle start.
- With Water Cooling System.
- One set of Tooling for Draw Bending.
- Wiper die Bracket.
- 1 Mandrel Rod.
- Operation and Maintenance Manual.
- Tool Box with Adjusted Tools.
- Electric: As required (3 phase 220V or 380V or 415V...)
Optional
- Anticipate Mandrel Extraction
- Automatic mandrel/machine lubrication
- Anti-clockwise bending direction
- Machine effective length over mandrel
- Safety Mat
Name | Unit | Data |
Max Bending Capacity | Mild steel round tube | mm | ￠63*3.5 |
Stainless Steel | mm | ￠63*2 |
Light alloy annealed round tube | mm | ￠63*4.5 |
Mild steel square tube | mm | 50*50*2.5 |
Mild steel rectangular tube | mm | 50*45*2.5 |
Mild steel round solid bar | mm | ￠25 |
Mild steel square solid bar | mm | 18*18 |
Max Bending Radius | mm | R300 |
Can customized as per customer’s requirement |
Min Bending Radius | mm | R30 |
Through Effective Distance Over Mandrel | mm | 2400 |
Can customized as per customer’s requirement |
Max Bending Degree | ° | 190 |
Bending Unit | pieces | 16 |
Bending Axis | Speed | Deg/sec | 60 |
Accuracy | mm | ±0.1 |
Power | KW | Controlled by Hydraulic |
Motor Power | KW | 7.5 |
Date Input | / | 1.Coordinate ( X, Y, Z ) |
/ | 2.Working value ( Y, B, C ) |
Max. Pressure | Mpa | 16 |
Max Storage Units | Group | 20 |
Can customized as per customer’s requirement |
Machine Dimensions | mm | 3300*850*1250 |
Appro. Weight | Kgs | 1800 |
Configuration of Hydraulic and Electronic Control SystemNAME | Brand | Supplier |
Hydraulic Motor |
| Wuxi Taihu |
Hydraulic Valve |
| Japan Yuken |
Over Flow Valve |
| Japan Yuken |
Human Interface | / | Jiangyin Oulong |
Encoder |
| Japan Nemicon |
Hydraulic Pump |
| TAIWAN YONGLING |
Sealing Element |
| Taiwan Ding Zing |
Contactor |
| France SCHNEIDER |
Over-Thermal Relay |
| France SCHNEIDER |
Air Switch |
| France SCHNEIDER |
Proximity Switch |
| Japan Omron |
Power Switch |
| Taiwan Meanwell |
Tansformer |
| Dong Lin Electric |
Oil Tube |
| Taiwan Lianhui |

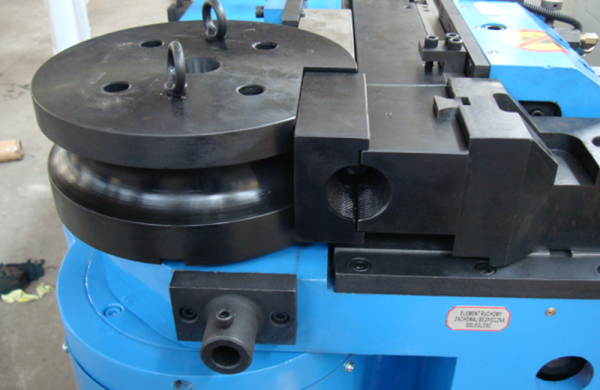

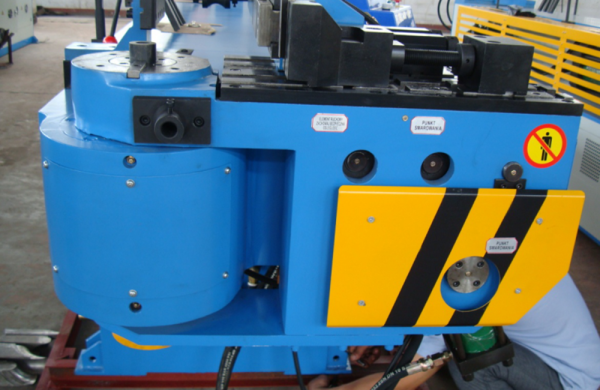

- Bending Die
- Clamp Die
- Pressure Die
- Mandrel
- Wiper Die(Optional)
