Almaco Machine Tool Co., Ltd.

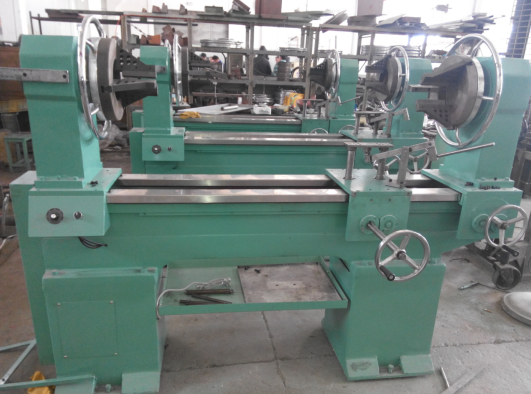

Model:CS155x2500
Main specification:
1.Cast iron lathe bed length:2500mm,
Taiwan TBI precision linear guide rail (imported from Japan), straightness is within 0.03mm.
2.Spindle through hole diameter:155mm
3.Dial 3-jaw chuck clamping range:10-200mm,concentricity is within 0.06mm,The claw is made of high temperature resistant alloy steel, which is treated twice to ensure rust resistance and no deformation.
4.Distance between two chucks:0-1650mm, The parallelism between the two heads and the guide rail surface is less than 0.05mm
5.The distance from spindle center to ground:1350mm,Distance between spindle center and worktable is 420 mm.
6.The two spindles adopt frequency conversion motor to drive the synchronous belt synchronous wheel through the drive shaft synchronous operation, stepless speed regulation
7.The spindle stepless speed 0-250 rpm, and the positive and negative rotation can be adjusted
8.Equip with a set of positive and negative screw head frame
9,Net weight 1600kg, volume (2.9m * 1m * 1.9m)
Machine processing accuracy:
1, guide rail straightness: 《0.05mm.
2: two front and guide rail surface parallelism:《0.05.
3: the concentricity of the two locomotive:《0.05
4: The chuck beat: 《0.08
5: two front synchronization error:《0.1 degrees
Name | Unit | Size |
1、Spindle speed range | r/min | 1-250 |
2、Chuck clamping range | mm | 10-200 |
3、Spindle bore | mm | 155 |
4、Distance of chuck | mm | 0-1650 |
5、Rail length | mm | 2500 |
6、Spindle power（Optional voltage） | kw | 1.5 |
7、Machine net weight | T | 1.6 |
8、Machine size（L×W×H） | mm | 2900×1000×1900 |
